Gira System 3000
Room temperature control

Heating control manually or via Bluetooth App

The Gira System 3000 room temperature controller ensures the right feel-good temperature with an integrated heating and cooling program. With its time programming, it offers the most intelligent way of controlling individual rooms according to demand while saving costs and going easy on resources, e.g. in the event of absence or reduced use. The room temperature can be regulated either with the display device or with a Bluetooth top unit with control via an app with a smartphone or tablet.

  • Room temperature control manually on the device (room temperature controller display) and via app (Bluetooth room temperature controller)
  • Enables time-controlled heating
  • Room temperature controller display: a total of three time switching ranges can be set;
    Bluetooth room temperature controller: 40 customised time switching ranges, e.g. for offices, are possible
  • Mit KNX RF compatible
  • Automatic heating optimisation: the target temperature is reached by the desired time
  • Holiday mode (only with Bluetooth room temperature controller)
  • Choice of different frame variants
  • Easy start-up
  • Easy copying of settings to other controllers


The Gira System 3000 operating top units for room temperature control

Intuitive operation and programming with the Gira System 3000 room temperature controller display

The system automatically recognizes that the operating element is mounted on the insert used to control the room temperature. Touch-sensitive buttons and a high-contrast illuminated display make the room temperature controller display easier than ever to operate. The functions range from direct manual settings to automatic control options.

In addition to manual operation, the current time can be taken for all seven days at the touch of a button in order to program the switching times. Alternatively, custom settings can be made separately for weekdays and the weekend via the menu. It is especially convenient that the changeover between summer and winter time is automatic.

Gira System 3000 room temperature controller display (item no. 5393 xx)

  • Manual control of the room temperature
  • Enables time-controlled and thus energy-efficient
    heating
  • Timer: easy operation and programming
  • Quick programming: storage of the current time as switching time
  • Blocking function for blocking manual operation on the device
  • Standard time program
  • Automatic heating optimisation
  • Automatic summer/winter time
  • Ambient temperature: −5 to +45 °C
  • Accuracy per month: ± 10 s
  • Power reserve: approx. 4 h

Easy operation using the Gira System 3000 App

Conveniently program and control from the comfort of your own sofa whenever you need to: The operating top unit of the Gira System 3000 Bluetooth room temperature controller takes room temperature control to a whole new level. Your smartphone or tablet becomes a control centre. The Gira System 3000 App gives you a clear overview of all the settings on a large screen, putting you in complete control. Time programs that have already been created can be easily copied into additional operating top units. With the v1.4 update, all existing Bluetooth top units can be updated via the app. From Autumn onwards, top units will automatically have the update.

Blocking function

The blocking function and the night mode of the status LED can be controlled via the app.

Affected System 3000 top units

Time switching points can be activated individually

Previously, timers could only be activated and deactivated at the same time. This can now be done for each timer separately. For example, temporary simulations can be set during holidays.

Affected System 3000 top units

Presence
simulation

Presence simulation is now also possible via the timers and no longer has to be activated and deactivated manually via the app.

Affected System 3000 top units

Astro function

The expansion of the Astro function means that individual evaluations of sunrise and sunset are also possible, and that the earliest and latest switching point can be adjusted.

Affected System 3000 top units

Call & signalling function

The call and signalling function is used to support persons requiring assistance in their private living environment and to deliberately draw attention.

Affected System 3000 top units

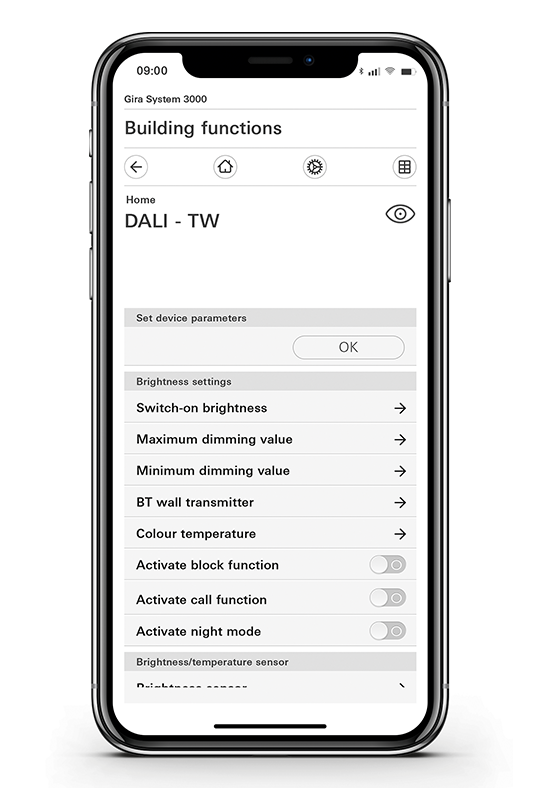

DALI Tunable White control

Colour temperature adjustment is now also possible with BT top units as well as manual top units.

Affected System 3000 top units

Colour temperature control

Thanks to the DALI control insert, users can use the app to adjust the colour temperature between cool and warm white light, according to their individual preference.

Affected System 3000 top units

Lighting control

Switching lights on and off, or dimming them to exactly the desired setting: With the Gira System 3000 App, lighting can be controlled with maximum flexibility.

Affected System 3000 top units

Gira System 3000 Bluetooth room temperature controller (item no. 5394 xx)

  • Manual control of the room temperature
  • Timer: easy operation and programming
  • Up to 40 custom time switching points
  • Blocking function for blocking manual operation on the device
  • Automatic summer/winter time
  • Ambient temperature: −5 to +45 °C
  • Accuracy per month: ± 10 s
  • Power reserve: approx. 4 h

Gira System 3000 Bluetooth operating top unit


Flush-mounted inserts

A modular system consisting of power inserts and operating top units offers the greatest possible scope for implementing functions. The room temperature control can be controlled on site with the operating element and also via Bluetooth (Komfort version).

Room temperature controller inserts

Gira System 3000
RTR insert with sensor connection

The Gira System 3000 room temperature controller insert with
sensor connection is used to switch electric floor heatings and electrothermic valve drives.

Product details:

  • Installation depth: 24 mm
  • Rated voltage: AC 230 V
  • Mains frequency: 50/60 Hz
  • Ambient temperature: -5 to +45°C
  • Standby power: 0.1 to 0.5 W
  • Input for switching to cooling mode
  • Interrupts the heating process after 60 minutes
    (overheating protection)
  • A remote sensor can be connected

Gira System 3000
Relay switching insert

The relay switching insert switches electric
floor heatings, electrothermic servos
and single-phase motors. The TEST button can be used to set delay times if desired.

Product details:

  • Installation depth: 24 mm
  • Rated voltage: AC 230 V
  • Mains frequency: 50/60 Hz
  • Ambient temperature: -25 to +45 °C
  • Standby power: 0.1 to 0.5 W
  • You can switch between heating and cooling via
    the auxiliary input
  • Test mode for function testing

Gira System 3000 zero-voltage relay switching insert

The switching insert for special requirements: It can be used to control electric floor heating systems and thermal servos in combination with a room temperature controller top unit.

Product details:

  • For switching different external conductors, e.g. for heating systems.
  • For switching low powers, e.g. radio auxiliary unit, staircase light relay.
  • Large switching bandwidth up to a maximum of 16 A.

Gira System 3000
Electronic switching insert

The electronic switching insert controls electrothermic
servos. It can be operated with or without a neutral conductor. The
set operating mode is indicated by an
LED.

Product details:

  • Installation depth: 24 mm
  • Rated voltage: AC 230 V
  • Mains frequency: 50/60 Hz
  • Ambient temperature: -5 to +45 °C
  • Standby power: 0.1 to 0.5 W
  • You can switch between heating and cooling
    via the auxiliary input
  • Electronic short-circuit protection
  • Electronic excess-temperature protection
  • Operation with or without a neutral conductor connection
  • Silent switching

Gira System 3000 product configurator: Select suitable inserts and top units for your project.

The function and performance of the Gira System 3000 is constantly improving. The new System 3000 product configurator makes it easier for you to get an overview of the different functions and options of the system. Use the configurator to find suitable inserts and top units for your project, then forward these directly to a parts list in the Gira online catalogue or to your wholesaler’s shopping basket.

Configure now


Easy and flexible installation

The Gira System 3000 has many practical features for simplified installation and start-up. With an extra-flat installation depth of only 24 millimetres, the new inserts now leave more space in the flush-mounted box and thus offer more flexibility when wiring. Recessed mounting claws make the installation easier and ensure greater safety. The connected consumers can be started up with a test button for function control without an operating top unit. The basic power is only 0.2 to 0.5 W, depending on the operating top unit.

The respective operating and mounting instructions can be downloaded quickly and practically via the link.


Installation steps

Thanks to the recessed mounting claws, the System 3000 inserts can be easily mounted in the flush-mounted box. With an installation depth of only 24 mm, they leave a great deal of space in the flush-mounted box and thus offer more flexibility for wiring.

The selected frame is mounted on the flush-mounted insert before the operating top unit is inserted.

The frame and operating top unit create a harmonious overall picture on the wall. With ten design lines and over 75 frame variants, Gira’s design system opens up a wide range of design options.

Downloads

Operating instructions

Room temperature controller Display, Room temperature controller BT

Operating instructions.

Bestell-Nr 5393 .., 5394 ..

PDF, 318,1 KB

Download


Room temperature controller insert with sensor connection

Operating instructions.

Bestell-Nr 5395 00

PDF, 253,7 KB

Download

Brochures

Gira Smart Home

Bestell-Nr 18124 90

PDF, 2,0 MB

Download


Gira Flexible building technology

Smart building and modernisation.

Bestell-Nr 18145 10

PDF, 3,6 MB

Download

Guides / system basics

Gira System 3000

System basics

PDF, 9,5 MB

Download
