Gira System 3000 blind control

Easy or smart control of blinds, shutters and awnings

Blinds, shutters and awnings can be controlled easily with the Gira System 3000. At the same time, it not only regulates the incidence of light in living areas but also stabilises the room climate and saves energy. Various top units are available for effortless, easy control of the Gira System 3000: from manual operating or touch top units to Bluetooth top units controlled by an app. The special feature of the Gira System 3000 is that a manual operating top unit can be replaced at any time with a different top unit for blind control from the System 3000. This can, for example, turn a switch into an easy-to-operate display device that can be used to set automatic movement times for electric blinds.

  • Raise and lower blinds manually with switches or touch top unit, or via the app
  • Setting automatic movement times
  • .Movement times can be adjusted to sunrise and sunset using the integrated astro function
  • WitheNet-Produkten and KNX RF compatible
  • Presence simulation
  • Individual or group control is possible
  • Different frame variants to choose from
  • Simple start-up

The Gira System 3000 operating top units for blind control in detail

The operating top units for the Gira System 3000 blind controllers feature intuitive operation and clear button labelling. Different variants enable personalised operating convenience, optionally by manual actuation or touch top unit, by Bluetooth or by eNet radio. Even the simplest operating top units save a customised intermediate position. The functions of the Memory and Display devices range from simple time control to comprehensive control options with the Bluetooth blind timer and timer. Simple settings can be adjusted directly on the device without any tools, comprehensive programming is carried out easily and conveniently using the Gira System 3000 App on a smartphone or tablet.

Gira Bluetooth wall transmitter

Gira System 3000 Bluetooth operating top unit

Gira System 3000 touch top unit, Gira E2, pure white glossy

Gira System 3000 operating top unit

Gira System 3000 2-gang operating top unit

Gira System 3000 operating top unit with arrow symbols

Gira System 3000 operating top unit memory

Gira System 3000 blind timer and timer display

Gira System 3000 Bluetooth blind timer and timer

Gira System 3000 wireless operating top unit memory

Gira eNet wireless operating top unit memory arrow symbols


Intuitive operation and programming

The system automatically recognizes that the operating element is mounted on the insert for blind control. Touch-sensitive buttons and a high-contrast, illuminated display make the blind timer and timer display easier than ever to operate. The functions range from direct manual settings to automatic control options.

In addition to manual operation, the current time can be taken for all seven days at the touch of a button in order to program the movement times. Alternatively, custom settings can be made separately for weekdays and the weekend via the menu. Especially convenient is that the integrated astro function can be used to adapt these movement times dynamically to the sunrise and sunset. The changeover between summer and winter time is automatic.


Gira System 3000 blind timer and timer display

  • Manual control of blinds
  • Storage of a custom intermediate position
  • Timer: easy operation and programming
  • Quick programming: storage of the current time as switching time
  • Blocking function used to deactivate the auxiliary unit and automatic function
  • Standard time program
  • Astro function
  • Automatic summer/winter time
  • Ambient temperature: −5 to +45 °C
  • Accuracy per month: ± 10 s
  • Power reserve: approx. 4 h

Easy operation using the Gira System 3000 App

Conveniently program and control from the comfort of your own sofa whenever you need to: The operating top unit of the Gira System 3000 Bluetooth blind timer and timer takes blind control to a new level. Your smartphone or tablet becomes a control centre. The Gira System 3000 App gives you a clear overview of all the settings for different blinds, awnings and shutters on a large screen, putting you in complete control. Time programs that have already been created can be easily copied into additional operating top units. With the v1.4 update, all existing Bluetooth top units can be updated via the app. From Autumn onwards, top units will automatically have the update.

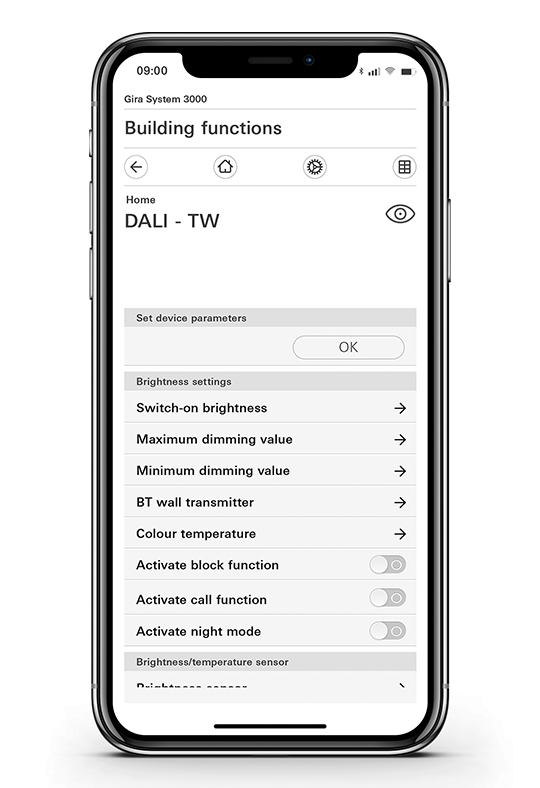

Blocking function

The blocking function and the night mode of the status LED can be controlled via the app.

Affected System 3000 top units

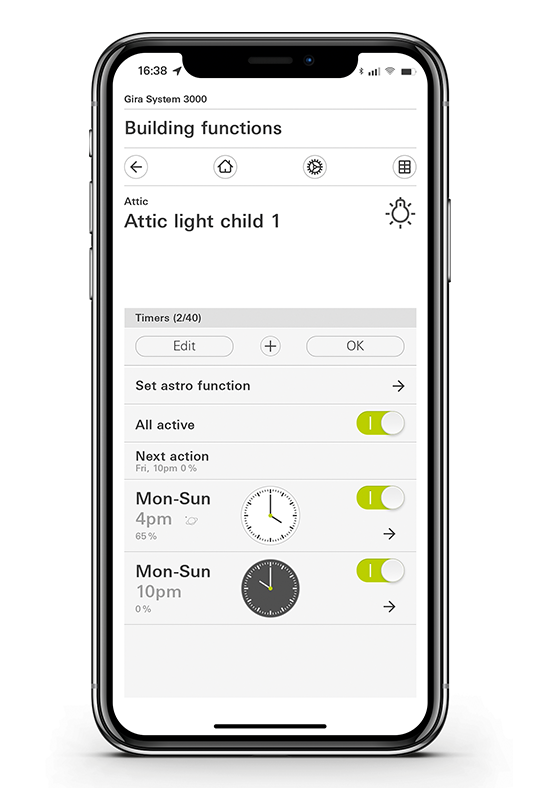

Time switching points can be activated individually

Previously, timers could only be activated and deactivated at the same time. This can now be done for each timer separately. For example, temporary simulations can be set during holidays.

Affected System 3000 top units

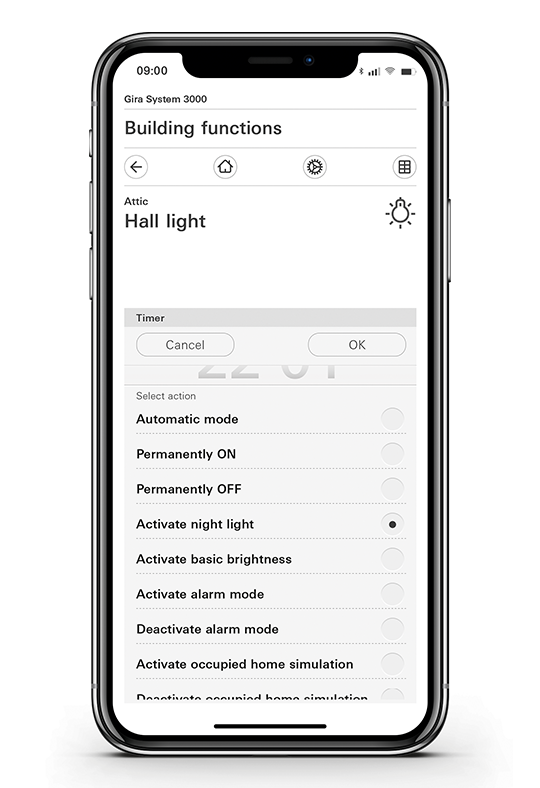

Presence
simulation

Presence simulation is now also possible via the timers and no longer has to be activated and deactivated manually via the app.

Affected System 3000 top units

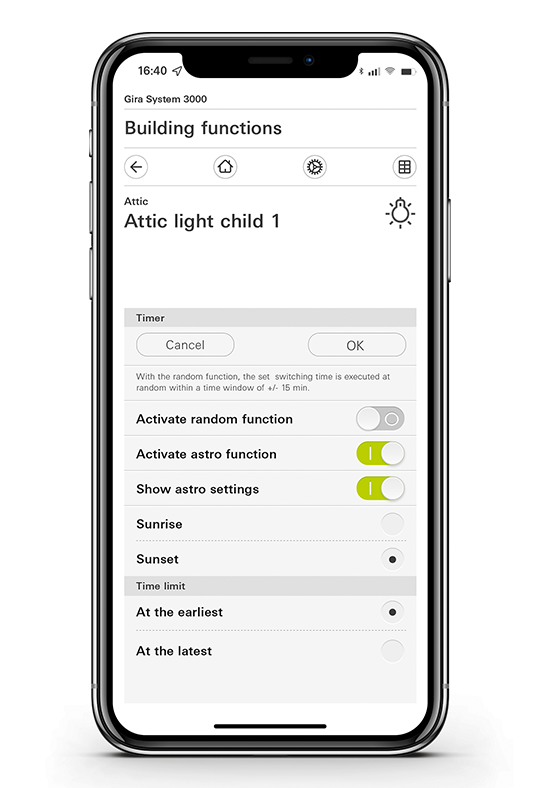

Astro function

The expansion of the Astro function means that individual evaluations of sunrise and sunset are also possible, and that the earliest and latest switching point can be adjusted.

Affected System 3000 top units

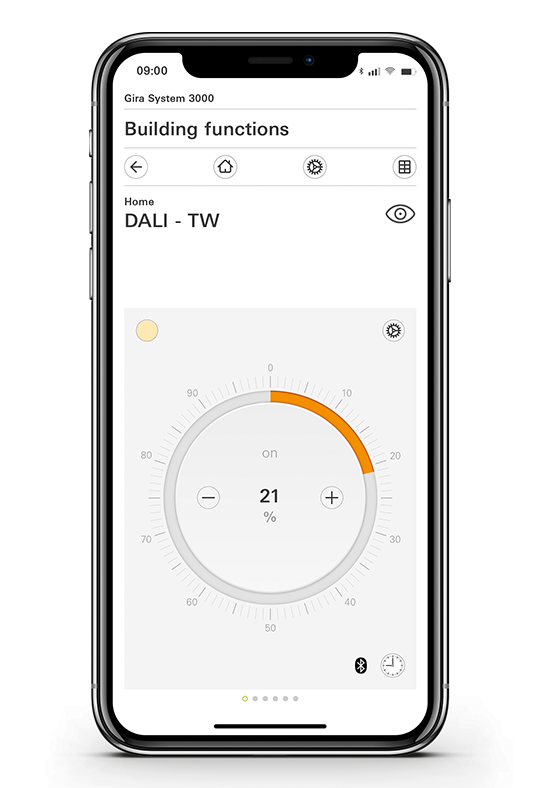

DALI Tunable White control

Colour temperature adjustment is now also possible with BT top units as well as manual top units.

Affected System 3000 top units

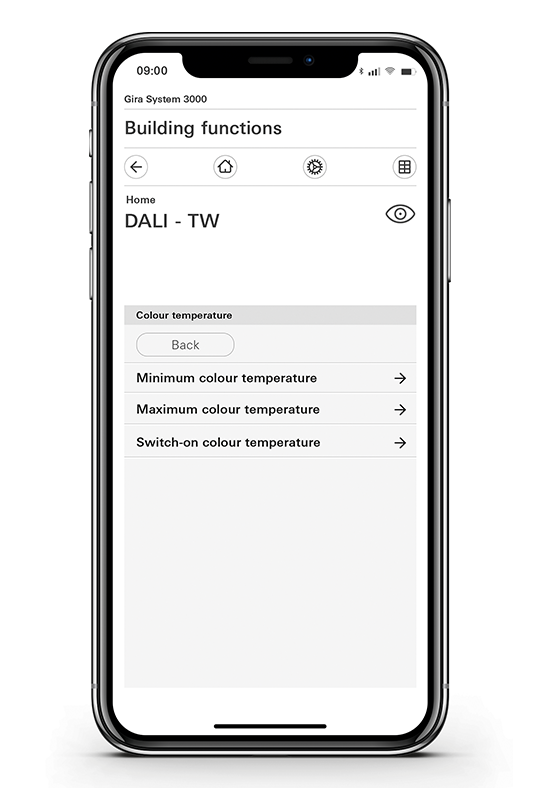

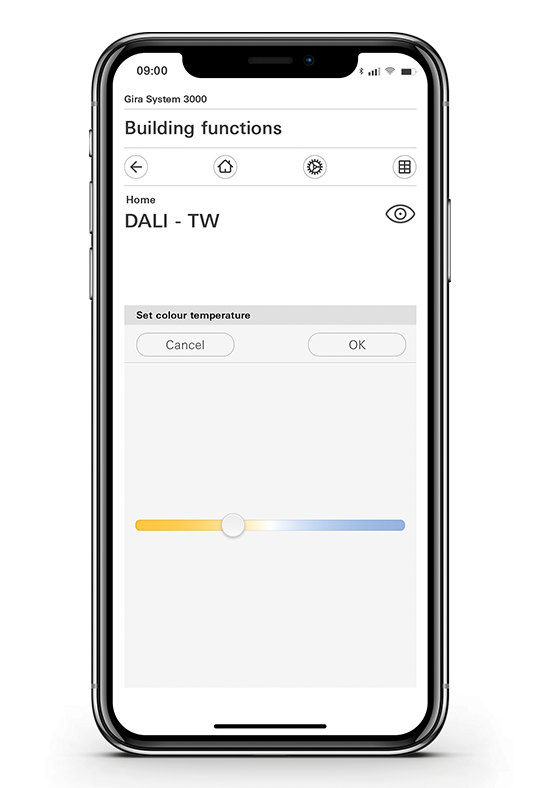

Colour temperature control

Thanks to the DALI control insert, users can use the app to adjust the colour temperature between cool and warm white light, according to their individual preference.

Affected System 3000 top units

Lighting control

Switching lights on and off, or dimming them to exactly the desired setting: With the Gira System 3000 App, lighting can be controlled with maximum flexibility.

Affected System 3000 top units


Gira System 3000 Bluetooth blind timer and timer

  • Manual control of blinds
  • Storage of a custom intermediate position
  • Timer: easy operation and programming
  • Up to 40 custom time switching points
  • Blocking function used to deactivate the auxiliary unit and
    automatic function
  • Easy copying of settings to other control units

  • Astro function
  • Automatic summer/winter time
  • Ambient temperature: −5 to +45 °C
  • Accuracy per month: ± 10 s
  • Power reserve: approx. 4 h

Gira System 3000 Bluetooth operating top unit

  • Even more accurate manual blind control
  • Quick and easy start-up with the installation wizard
  • Operation and time control by mobile device using Bluetooth

  • Bluetooth interface to the System 3000 brightness and temperature sensor BT
  • Ambient temperature: ‑5 to +45 °C

Functions of the Gira System 3000 Bluetooth operating top unit


Other operating top units

Gira System 3000
Operating top unit

The reliable standard operating top unit for manual control of blinds, shutters and awnings. This device can already store a custom intermediate position. The blind can be raised or lowered to any position for specific visual and sun protection.

  • Manual control of blinds
  • Storage of a custom intermediate position
  • Ambient temperature: −5 to +45 °C

Gira System 3000 Bluetooth operating top unit

The Bluetooth function has been added to the Gira System 3000 operating top unit.

  • Manual blind control
  • Save customised intermediate position
  • Quick and easy start-up with the installation wizard
  • Ambient temperature: -5 °C to +45 °C

Gira System 3000
Operating top unit arrow symbols

The arrow symbols make the function of this operating top unit immediately obvious. This device also allows a custom intermediate position to be stored.

  • Manual control of blinds
  • Storage of a custom intermediate position
  • Ambient temperature: −5 to +45 °C

Gira System 3000 operating top unit memory

The Gira System 3000 operating top unit memory can not only save a customised intermediate position, but also a time for raising and lowering. If the memory mode is activated, this is repeated at 24-hour intervals.

In night mode, the status and function LED are not permanently illuminated – meaning that sleep is not disturbed.

  • Blocking function to disable auxiliary unit operation
  • Night mode: Status and function LED are not
    permanently lit
  • Ambient temperature: -5 °C to +45 °C
  • Manual blind control
  • Save customised intermediate position
  • Save raising and lowering time
  • Repeat at 24-hour intervals when memory mode is activated

Gira System 3000 touch top unit

The Gira System 3000 touch top unit impresses with its timeless modern design and convenient digital user interface. The blind controller works intuitively via three touch-sensitive touch surfaces and a slider surface. With the memory function, an intermediate position can be saved.

  • Easy height adjustment with a single tap or swipe
  • Movement time, slat changeover time and end positions can be set during start-up
  • LED light bar to indicate curtain position
  • Permanent or intermittent status display
  • Modern design and flat like a button
  • Ambient temperature: -5 °C to +45 °C

Gira Bluetooth wall transmitter

The Gira Bluetooth wall transmitter sits flush against the wall and can be glued or screwed directly onto a surface using the base plate supplied.

  • With Release 1.4, the Bluetooth radio wall transmitters can also be used as an auxiliary unit for the System 3000 Bluetooth top units.
  • Multiple Bluetooth top units in one room can be controlled as a group.
  • Control lighting systems with Bluetooth interface

Gira System 3000 wireless eNet
Operating top unit memory

Gira System 3000 wireless eNet
Operating top unit memory
With arrow symbols

The existing Gira System 3000 top units can be easily replaced with a Gira eNet wireless operating top unit or placed directly on System 3000 flush-mounted inserts. In combination with the eNet wireless wall transmitter, this allows an additional switching point to be added in the room. For even more convenience, the eNet wireless operating top unit can also be used with the Gira eNet server to enable control with a smartphone, tablet or voice control.

  • Operation on blind insert
  • Manual, wireless and time-controlled operation of, for example,
    blinds, shutters, awnings or fans.
  • Storage of a raising and lowering time. In memory mode, these switching times are repeated in a 24-hour cycle.
  • The blocking function blocks auxiliary unit operation, wireless operation and deactivates memory mode
  • Night mode can be set. Status and function LEDs are not permanently lit up
  • Status indication with LED
  • In combination with the eNet server, it can be controlled also with a smartphone, tablet or voice control
  • Fully encrypted wireless transmission (AES-CCM). Can be set with eNet server version 2.2 or higher (depending on the insert)
  • Ambient temperature: −5 to +45 °C

Flush-mounted inserts

A modular system consisting of power inserts and operating top units offers the greatest possible scope for implementing functions. It can be operated manually with a control button as well as by electronic time control. Central functions can also be implemented via the auxiliary inputs, e.g. using a wind sensor or master button.

Blind control inserts

Gira System 3000
Blind control insert
Without auxiliary input

The Gira System 3000 blind control insert without auxiliary input is the command centre used to control electrically operated blinds, shutters and awnings.
Motors with a connected load of up to 700 W can be controlled.

Product details:

  • Installation depth: 24 mm
  • Rated voltage: AC 230 V ~
  • Mains frequency: 50/60 Hz
  • Ambient temperature: -5 to +45 °C
  • Contact type: μ contact
  • Standby power: 0.2 to 0.5 W, depending on the top unit
  • Connected load of motors: 700 W
  • Connection: single-wire and fine-wire with and without ferrule of 0.5 to 4.0 mm² or 2 × 2.5 mm²

Gira System 3000
Blind control insert
With auxiliary input

The Gira System 3000 blind control insert with auxiliary input enables integration in group or central control units to allow several blinds to be operated simultaneously with one switch. Automatic locking in the event of a wind alarm due to a connected wind sensor is also possible via the auxiliary input.

Product details:

  • Installation depth: 24 mm
  • Rated voltage: AC 230 V
  • Mains frequency: 50/60 Hz
  • Ambient temperature: -5 to +45 °C
  • Contact type: μ contact
  • Standby power: 0.2 to 0.5 W, depending on the top unit
  • Connected load of motors: 700 W
  • Connection: single-wire and fine-wire with and without ferrule of 0.5 to 4.0 mm² or 2 × 2.5 mm²
  • Integration in group or central control units
  • Wind alarm lock via auxiliary input

Gira System 3000 product configurator: Select suitable inserts and top units for your project.

The function and performance of the Gira System 3000 is constantly improving. The new System 3000 product configurator makes it easier for you to get an overview of the different functions and options of the system. Use the configurator to find suitable inserts and top units for your project, then forward these directly to a parts list in the Gira online catalogue or to your wholesaler’s shopping basket.

Configure now


Easy and flexible installation

The Gira System 3000 has many practical features for simplified installation and start-up. With an extra-flat installation depth of only 24 millimetres, the new inserts now leave more space in the flush-mounted box and thus offer more flexibility when wiring. Recessed mounting claws make the installation easier and ensure greater safety. The connected consumers can be started up with a test button for function control without an operating top unit. The basic power is only 0.2 to 0.5 W, depending on the operating top unit.

The respective operating and mounting instructions can be downloaded quickly and practically via the link.

Installation steps

Thanks to the recessed mounting claws, the flush-mounted inserts can be easily mounted in the flush-mounted box. With an installation depth of only 24 mm they leave a great deal of space in the flush-mounted box and thus offer more flexibility for wiring.

The selected frame is mounted on the flush-mounted insert before the operating top unit is inserted.

The frame and operating top unit create a harmonious overall picture on the wall. With ten design lines and over 75 frame variants, Gira’s design system opens up a wide range of design options.
